Opened 13 years ago
Closed 4 years ago
#11641 closed Bug Report - General (Trac EOL)
position using percentage in theme are ignored
| Reported by: | JYA | Owned by: | stuartm |
|---|---|---|---|
| Priority: | minor | Milestone: | 29.2 |
| Component: | MythTV - User Interface Library | Version: | Master Head |
| Severity: | low | Keywords: | |
| Cc: | Ticket locked: | no |
Description
Using Qt rendering, and "Normal" playback profile
Say you have a window with the following definition
<window name="notification">
<area>50%,50%,780,180</area>
on a 1280x720 screen, during playback of 768x432 content; the window will be displayed in (0,600ish)
If I use absolute coordinate the window is rendered in the specified location.
Similarly, if the theme is defined with a baseres resolution of say 1920x1080, and the screen used is 1280x720; the coordinates aren't recalculated according to the actual screen referential.
Using OpenGL based painter and it works fine.
Attachments (1)
Change History (11)
comment:3 by , 13 years ago
comment:4 by , 13 years ago

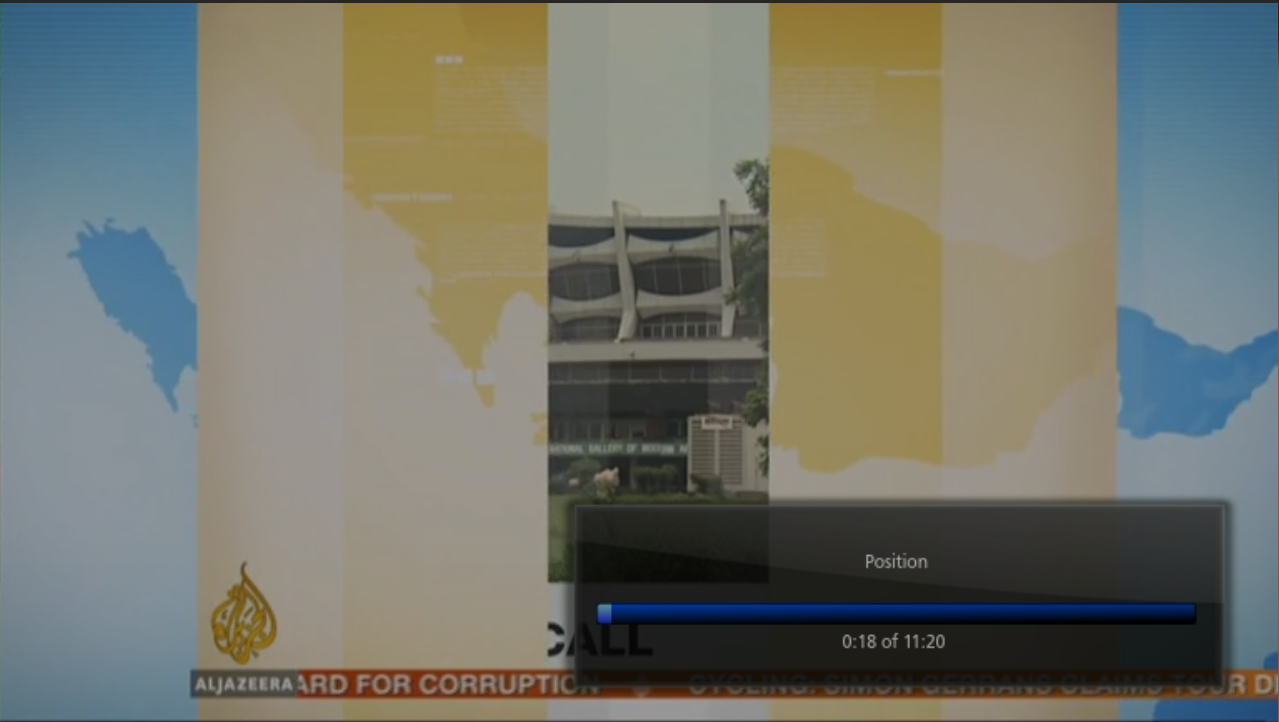

Correction, absolute positions are also not recalculated accordingly. Screen capture attached
by , 13 years ago
| Attachment: | Screen Shot 2013-07-03 at 10.34.19 PM.png added |
|---|
arclight using Qt painting
comment:5 by , 13 years ago
| Milestone: | unknown → 0.28 |
|---|---|
| Priority: | major → minor |
| Severity: | medium → low |
| Version: | Unspecified → Master Head |
This is a current known limitation with the OSD and I don't know what a fix would require, but I'll look at it for 0.28
comment:9 by , 9 years ago
| Milestone: | 29.0 → 29.1 |
|---|
comment:10 by , 9 years ago
| Milestone: | 29.1 → 0.28.2 |
|---|
Moving remaining open tickets to 0.28.2 milestone
comment:11 by , 9 years ago
| Milestone: | 0.28.2 → 29.2 |
|---|
Moving remaining open tickets to 29.2 milestone
comment:12 by , 4 years ago
| Resolution: | → Trac EOL |
|---|---|
| Status: | new → closed |
We have moved all bug tracking to github [1]
If you continue to have this issue, please open a new issue at github, referencing this ticket.
Actually, going to re-open it as only some screens are being recalculated.
OSD themes currently must define location using absolute values; percentage do not work
