AirPlay issues

[Craig Treleaven <ctreleaven@…>]

Issues with AirPlay from iPhone 5/iOS 7.0.2 to Myth 0.27-fixes frontend. Using Video or YouTube apps, audio usually plays but video is not always displayed. Using Photos app, pictures are never displayed and sometimes Myth is not listed as a possible AirPlay target.

For more detail, see IRC logs and mythtv-users list discussions: ​http://irc.mythtv.org/ircLog/channel/4/2013-10-08 ​http://www.gossamer-threads.com/lists/mythtv/users/554980

[Craig Treleaven <ctreleaven@…>]

--version output

[Craig Treleaven <ctreleaven@…>]

-v playback --loglevel=debug

[Craig Treleaven <ctreleaven@…>]

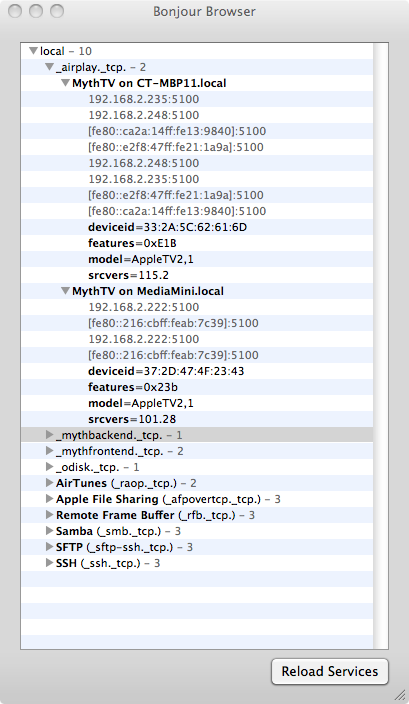

Bonjour Browser: AirPlay info

[Craig Treleaven <ctreleaven@…>]

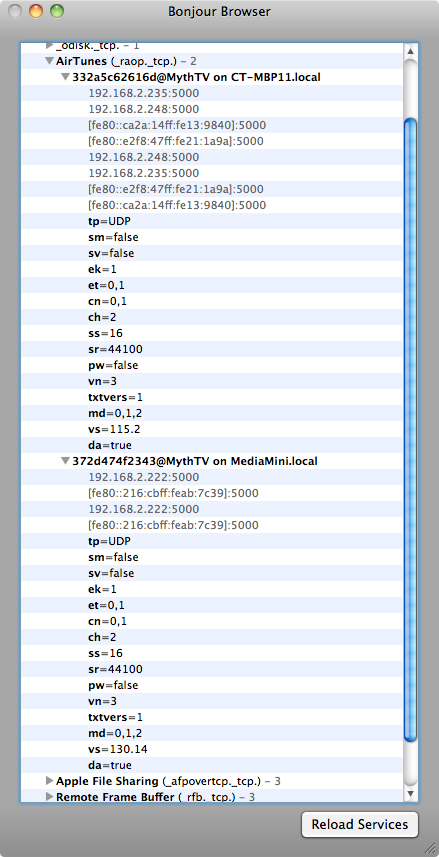

Bonjour Browser: AirTunes info

[Craig Treleaven <ctreleaven@…>]

Attempted 3 AirPlay activities in attached log:

1) Played video podcast from iTunes (11.1 on MBP running 10.6.8) to mythfrontend (.27-fixes as of 10/10). Played fine.

2) Videos app (iOS 7.0.2 on iPhone 5). Audio played on frontend but no video.

3) Photos app (same). Frontend not listed as an AirPlay target.

[JYA]

on your mac: do the following:

close mythfrontend if there are any running.

Each command must be run in a separate terminal (they are blocking, and once you're done press Ctrl-C to interrupt).

# 1 Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "txtvers=1" "ch=2" "cn=0,1" "et=0,3" "sv=false" "da=true" "sr=44100" "ss=16" "pw=false" "vn=65537" "tp=TCP,UDP" "md=0,1,2" "vs=104.29" "am=AppleTV2,1" "sf=0x4"

Terminal 2:

 dns-sd -R "MythTV" _airplay._tcp local 7000 "deviceid=58:55:CA:12:34:56" "features=0x7" "model=AppleTV2,1"

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

# 2 Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "txtvers=1" "ch=2" "cn=0,1,2,3" "da=true" "et=0,3,5" "md=0,1,2" "pw=false" "sv=false" "sr=44100" "ss=16" "tp=UDP" "vn=65537" "vs=130.14" "am=AppleTV2,1" "sf=0x4"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "deviceid=58:55:CA:12:34:56" "features=0x39f7" "model=AppleTV2,1" "srcvers=130.14"}}}

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

# 3: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "sf=0x4" "am=AppleTV2,1" "vs=130.14" "vn=65537" "tp=UDP" "ss=16" "sr=44100" "sv=false" "pw=false" "md=0,1,2" "et=0,3,5" "da=true" "cn=0,1,2,3" "ch=2" "txtvers=1"

Terminal 2:

 dns-sd -R "MythTV" _airplay._tcp local 7000 "srcvers=130.14" "model=AppleTV2,1" "features=0x39f7" "deviceid=58:55:CA:12:34:56"

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

# 4: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "md=0,1,2" "txtvers=1" "vn=3" "pw=false" "sr=44100" "ss=16" "ch=2" "cn=0,1" "et=0,1" "ek=1" "sv=false" "sm=false" "tp=UDP"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "srcvers=101.28" "model=AppleTV2,1" "features=0x77" "deviceid=58:55:CA:12:34:56"

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

# 5: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "tp=UDP" "sm=false" "sv=false" "ek=1" "et=0,1" "cn=0,1" "ch=2" "ss=16" "sr=44100" "pw=false" "vn=3" "txtvers=1" "md=0,1,2"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "deviceid=58:55:CA:12:34:56" "features=0x77" "model=AppleTV2,1" "srcvers=101.28"

# 6: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "ss=16" "rhd=4.7.1" "sr=44100" "ch=2" "sv=false" "vs=150.33" "md=0,1,2" "vn=65537" "txtvers=1" "am=AppleTV3,2" "pw=false" "vv=1" "tp=UDP" "sf=0x4" "da=true" "cn=1,2,3" "et=0,3,5"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "srcvers=150.33" "vv=1" "model=AppleTV3,2" "deviceid=58:55:CA:12:34:56" "features=0x100029ff" "rhd=4.7.1"

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

# 7: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "da=true" "vs=115.2" "md=0,1,2" "txtvers=1" "vn=3" "pw=false" "sr=44100" "ss=16" "ch=2" "cn=0,1" "et=0,1" "ek=1" "sv=false" "sm=false" "tp=UDP"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "srcvers=115.2" "model=AppleTV2,1" "features=0xE1B" "deviceid=58:55:CA:12:34:56"

See if the device appear on iTunes on the mac, and on the iPhone in the control center; report

For the record: # 1 is an Apple TV 2 running iOS 4 # 2 is an Apple TV 2 running iOS 6 # 3 is an Apple TV 2 running iOS 6 with the dns arguments reversed # 4 is MythTV AirPlay video back in late 2012 # 5 is MythTV with first version of RAOP in Jan 2012 # 6 is AirServer (they have implemented FairPlay. # 7 is MythTV version 0.27 as of today

The more it goes, the more I think it's: a) a bug in iOS 7 (my Apple TV currently shows up as audio only, no video or

b) they are now requiring a more recent version of their ATV iOS, which unfortunately require FairPlay support, which we can't provide

# 7 gives me consistent results, and now that all my devices have been updated to that version, I get goot and reliable result

[Craig Treleaven <ctreleaven@…>]

Not sure what you expected to see, but following are the results. I'll attach logs from the two Terminal sessions.

 # 1 is an Apple TV 2 running iOS 4
iTunes: Yes
iOS: No
 # 2 is an Apple TV 2 running iOS 6
iTunes: Yes
iOS: Yes
 # 3 is an Apple TV 2 running iOS 6 with the dns arguments reversed
iTunes: Yes
iOS: Yes
 # 4 is MythTV AirPlay video back in late 2012
iTunes: Yes
iOS: Yes
 # 5 is MythTV with first version of RAOP in Jan 2012
iTunes: Yes
iOS: Yes
 # 6 is AirServer (they have implemented FairPlay.
iTunes: Yes
iOS: Yes
 # 7 is MythTV version 0.27 as of today
iTunes: Yes
iOS: Yes

[JYA]

didn't need the log...

Well, it's obvious then the issue is with the phone and what it enforces and when.

Only bonjour info determines what the iphone shows or not. It's obvious the issue is not consistent.

That you see the "MythTV" device when you use:

# 7: Terminal 1:

dns-sd -R 5855CA123456@MythTV _raop._tcp local 49152 "da=true" "vs=115.2"
"md=0,1,2" "txtvers=1" "vn=3" "pw=false" "sr=44100" "ss=16" "ch=2"
"cn=0,1" "et=0,1" "ek=1" "sv=false" "sm=false" "tp=UDP"

Terminal 2:

dns-sd -R "MythTV" _airplay._tcp local 7000 "srcvers=115.2"
"model=AppleTV2,1" "features=0xE1B" "deviceid=58:55:CA:12:34:56"

surprised it would show for # 7... Does it disappear each time the dns-sd commands are interrupted and it reappears each time you run them?

if so, does starting myth on that machine makes it appear ? (it uses exactly that info).

In any case, there's nothing more I can do...
